Resin 3D Printer Not Curing? Troubleshooting Guide
Category: Troubleshooting
A resin printer not printing anything is somehow worse than one that's failing loudly — at least a jammed FDM printer has the decency to grind and beep about it, while a resin printer will just quietly cure nothing and let you find out an hour later. I've chased this exact resin printer troubleshooting problem on my own machine more than once, and almost every "nothing is curing" case comes down to one of about five things, most of which take under a minute to check.
Quick Terms, So the Rest of This Makes Sense

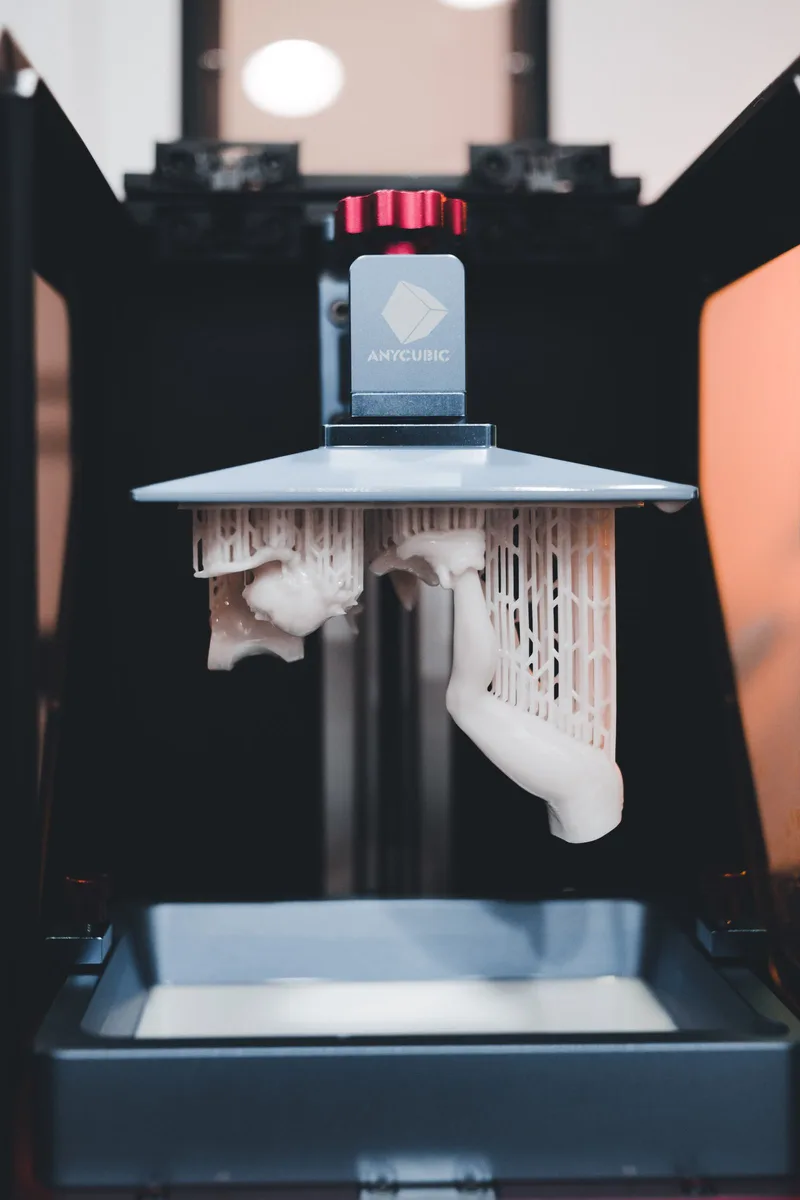

If you're new to resin printing, three words come up constantly: the vat is the tray holding liquid resin, the FEP film is the thin, non-stick sheet on the bottom of that vat that light shines through, and the LCD/screen is what actually projects the UV image that cures each layer. Nothing curing at all usually traces back to one of these three.
Start Here: The Dry Run Test
Before touching settings, do this: run a print with an empty vat (no resin) and watch whether the build plate moves and the screen lights up correctly. This single test tells you more than half the troubleshooting steps below combined — if the plate doesn't move or the screen doesn't illuminate, this is a hardware problem, not a resin or settings problem, and no amount of exposure-time tweaking will fix it.
What's Actually Going Wrong?
| Symptom | Likely Cause | Fix |
| Nothing on the plate, nothing in the vat, dry run fails | Screen or light source not functioning | Run an exposure test print; contact the manufacturer if no light is visible at all |
| Nothing on the plate, but a cured layer is visible in the vat | Adhesion failure, not a curing failure | Re-level the build plate; increase bottom layer exposure time |
| Thin film on the plate, nothing else | Underexposure | Increase exposure time; check LCD for reduced brightness from age |
| Resin looks cloudy or doesn't cure a drop under sunlight | Resin has degraded or separated | Stir thoroughly with a spatula; replace if it still won't cure under direct light |
| Build plate is wet with IPA when the print starts | Isopropyl alcohol is repelling the resin | Fully dry the plate before starting any print |
Resin Condition: The Cause Everyone Skips First
Resin that's been sitting in the vat for weeks can separate — the reactive components that actually cure under UV settle unevenly, and printing from the top of that mix gives you resin that behaves like it's expired even if the bottle isn't. Stir it thoroughly with a spatula before every print session, not just when you first open a new bottle. If you're unsure whether a batch is still good, put a drop on a scrap surface under direct sunlight; if it doesn't start solidifying within a minute or two, it's not going to perform any better inside the printer — resin doesn't get shy in there and try harder.
Hardware: The LCD and Light Source
Over time, resin printer screens can develop light leaks or dim spots — sections where UV bleeds through unevenly or stops projecting at full strength. This is the part most guides bury deep in a giant troubleshooting list, but it's one of the first things to rule out if the dry run test above showed a lighting problem. Run a manufacturer-provided exposure test file if you have one; if you see no light at all rather than an uneven pattern, that's a more serious hardware failure worth contacting support about rather than continuing to troubleshoot settings.
Environment: Temperature Matters More Than People Expect
Resin cures reliably between about 22-30C ambient temperature. Print in a cold garage in winter and you may see inconsistent curing that has nothing to do with your settings, your resin, or your screen — it's just too cold for the chemistry to behave the way your exposure settings assume. A cheap space heater running for twenty minutes before a cold-weather print solves more "mystery" failures than people expect — turns out chemistry has opinions about garages in January too.
Build Plate: Recalibrate Before You Blame Settings
A poorly leveled build plate causes adhesion failures that look exactly like curing failures from the outside — nothing sticks, so it looks like nothing cured, even though the resin itself cured just fine in the vat. Re-level before you start adjusting exposure times; chasing settings on a badly calibrated plate is a good way to spend an evening fixing the wrong problem entirely.
FAQ
Why is my resin printer showing nothing on the build plate at all?
Run the dry-run test first (empty vat, watch the screen and plate). If the screen doesn't light up, it's a hardware issue. If it does, the resin either isn't curing (check resin condition and exposure time) or isn't sticking (check bed leveling).
How do I know if my resin has gone bad?
Put a drop on a scrap surface in direct sunlight. If it doesn't begin solidifying within a minute or two, replace it — stirring won't fix genuinely degraded resin, only resin that's simply separated from sitting too long.
Can cold weather really stop a resin printer from curing properly?
Yes. Resin cures reliably in roughly a 22-30C range. Below that, curing can be inconsistent or fail outright even with otherwise correct settings.
Is a curing failure the same as an adhesion failure?
No, and they're commonly confused. A curing failure means the resin itself never solidified — check the vat, it'll still be liquid or gel-like. An adhesion failure means the resin cured but didn't stick to the plate — you'll usually find a cured layer sitting loose in the vat instead.
